スイングアーム タイプ10 XJR130(07-)

  • ¥220,000(税込み)
  • (送料サービス・個別発送)
製品番号
52-261-10
在庫数 : 0
在庫状況:
数量:

商品概要

JAN:4539770102103

・アルミ角メインパイプ(80mmx40mm/目の字断面)
・コの字タイプチェーンブロック採用

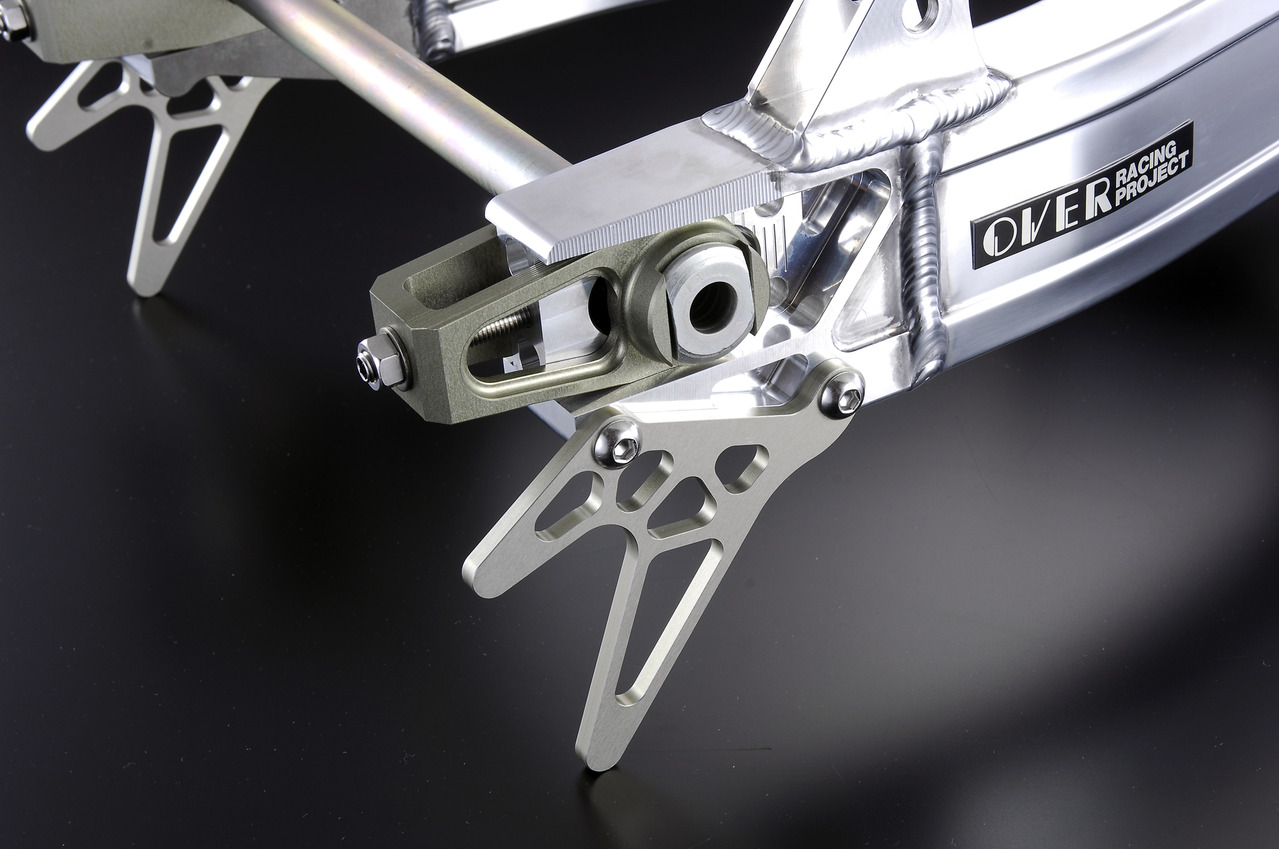

・レーシングスタンドフック標準装備
・ピボットベアリング採用

・タイプ9にスタビライザーを追加仕様

・アクスルシャフトは付属しません。

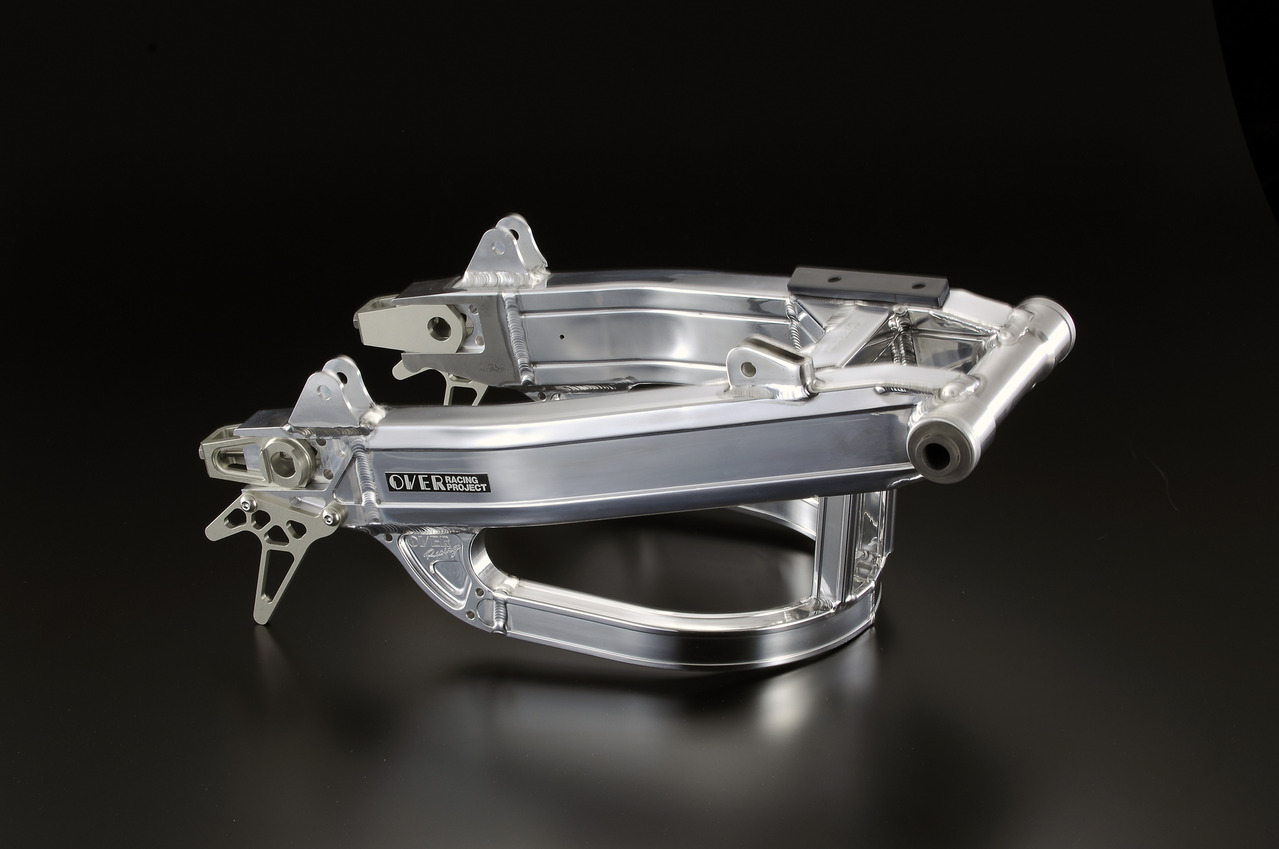

掲載の画像は、共通の画像を使用しているため、
該当モデル用ではありません。
トルクロッド受け、サス受けの形状や位置が画像とは異なります。

基本な寸法はスタンダード幅、スタンダード長になります。
トルクロッド受はスタンダード位置に溶接取付になります。
車高を純正時と合わせるためにサス受けは位置を変更しています。

チェーンガードやインナーフェンダー用の取付ステーはありません。

リペア用 レーシングスタンドフック:43-99-31

ロング加工、ワイド加工、トルクロッド受け/サス受け位置変更など、
セミオーダーにて製作が可能です。
詳しくはFAX、またはお電話にてお問い合わせください。

■スイングアームオーダーシート (PDF)


・The main pipe is made of aluminum with an angled shape (80mmx40mm with an eye-shaped cross-section)
・Features a C-shaped chain block
・Equipped with a racing stand hook as standard
・Utilizes pivot bearings
・Type 9 comes with an added stabilizer

・Axle shaft is not included.

The images shown are using generic images and may not correspond to the specific model mentioned.
The shapes and positions of the torque rod mount and suspension mount may differ from the images.

The basic dimensions are set to standard width and standard length.
The torque rod mount is welded in the standard position.
The suspension mount has been relocated to match the stock ride height.
There are no mounting brackets for the chain guard or inner fender.

For repairs, the racing stand hook can be obtained separately (43-99-31)

We also offer customizations such as long modifications, wide modifications, and changes in torque rod mount and suspension mount positions through semi-custom orders.
For more information, please contact us via fax or phone.

■ Swing Arm Order Sheet (PDF)
