スイングアーム タイプ10 CB750FA-FC/FZ

  • ¥220,000(税込み)
  • (送料サービス・個別発送)
製品番号
52-05-10
在庫数 : 0
在庫状況:
数量:

商品概要

・アルミ角メインパイプ(80mmX40mm目の字断面)
・スタビライザー付き

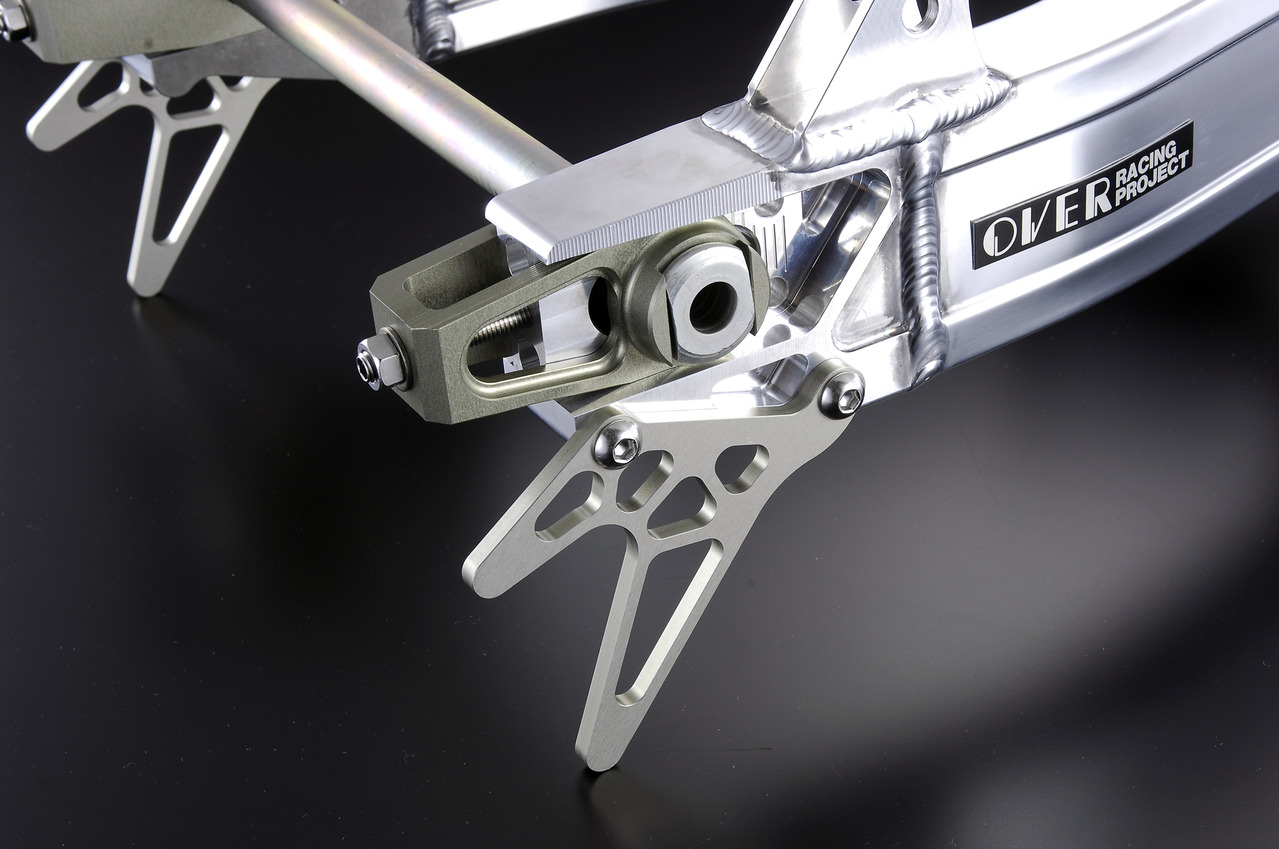

・新型チェーンブロック採用
・レーシングスタンドフック標準装備。
・ピボットベアリング

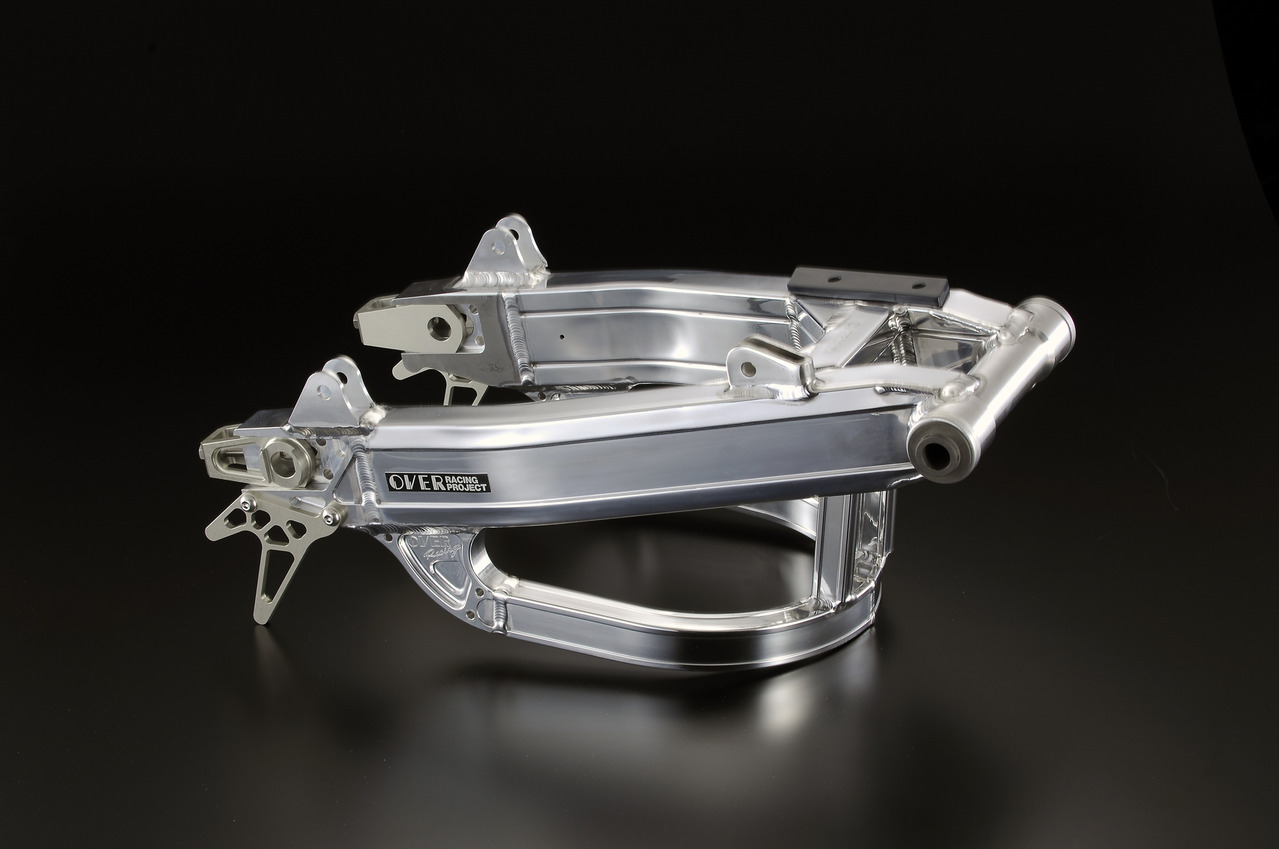

掲載の画像は、共通の画像を使用しているため、
該当モデル用ではありません。
トルクロッド受け、サス受けの形状や位置が画像とは異なります。


※全長(ピボットセンターからアクスルセンター)が純正よりも10mm短くなります。
その他寸法は純正同等になります。

ロング加工、ワイド加工、トルクロッド受け/サス受け位置変更など、
セミオーダーにて製作が可能です。
詳しくはFAX、またはお電話にてお問い合わせください。

■スイングアーム オーダーシート(PDF)

Aluminum angle main pipe (80mm x 40mm H-shaped cross-section)
Equipped with stabilizer
New type of chain block adopted
Racing stand hook comes as standard equipment
Pivot bearing

Please note that the image shown is not for the specific model as a common image is used. The shapes and positions of the torque rod and suspension mount differ from those shown in the image.
The total length (from pivot center to axle center) will be 10mm shorter than the genuine product, but all other dimensions are equivalent.

We offer semi-customized production, including long processing, wide processing, and changes to torque rod and suspension mount positions.
For more information, please contact us by fax or phone.

■ Swing arm order sheet (PDF)
