商品概要
JAN:4539770124860
2by2ポジション
15mmBack/10mmUp
20mmBack/25mmUp
25mmBack/10mmUp
30mmBack/25mmUp
・ブラックアルマイト仕上げ
・STDマスター使用可能
・STDブレーキホース使用可能(STD長にて使用できます)
・タンデムステップ使用可能
・正/逆チェンジ可
・クイックシフター装着時 正/逆チェンジ可
2by2 Position
15mm Back/10mm Up
20mm Back/25mm Up
25mm Back/10mm Up
30mm Back/25mm Up
・Black anodized finish
・Compatible with STD (Standard) master cylinder
・Compatible with STD brake hose (can be used with the standard length)
・Compatible with tandem step
・Forward/Reverse shifting possible
・Forward/Reverse shifting possible when equipped with a quick shifter
2by2ポジション
15mmBack/10mmUp
20mmBack/25mmUp
25mmBack/10mmUp
30mmBack/25mmUp
・ブラックアルマイト仕上げ
・STDマスター使用可能
・STDブレーキホース使用可能(STD長にて使用できます)
・タンデムステップ使用可能
・正/逆チェンジ可
・クイックシフター装着時 正/逆チェンジ可
2by2 Position
15mm Back/10mm Up
20mm Back/25mm Up
25mm Back/10mm Up
30mm Back/25mm Up
・Black anodized finish
・Compatible with STD (Standard) master cylinder
・Compatible with STD brake hose (can be used with the standard length)
・Compatible with tandem step
・Forward/Reverse shifting possible
・Forward/Reverse shifting possible when equipped with a quick shifter
商品説明

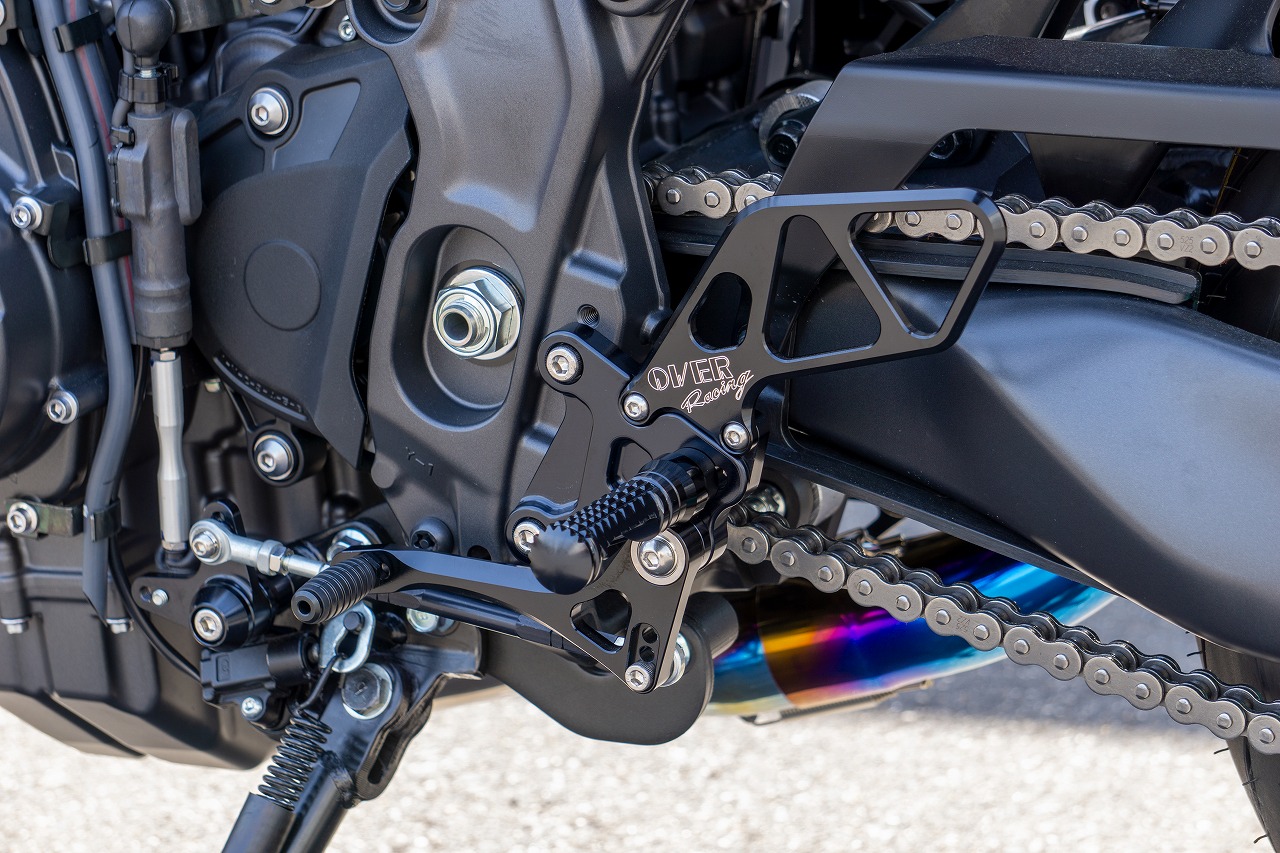

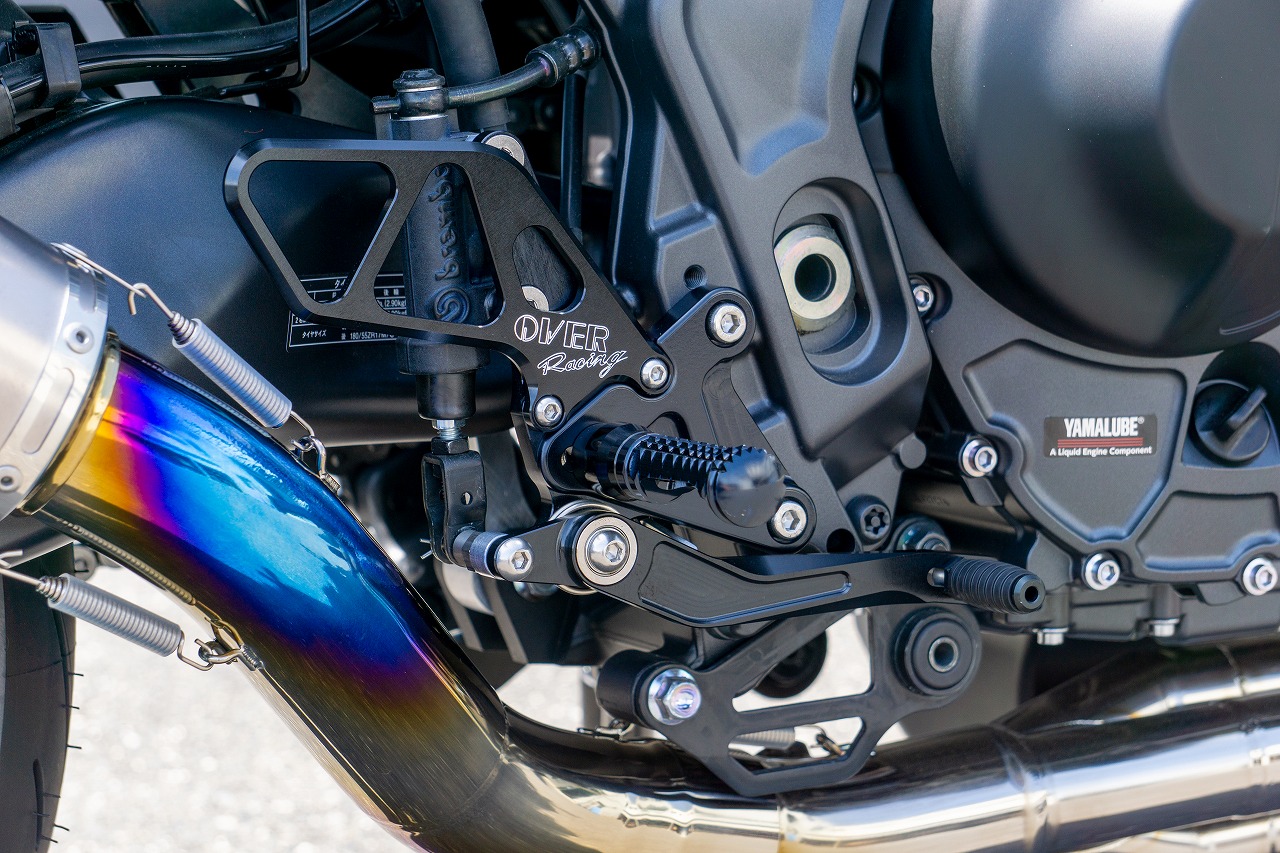

MT-09(21-)用として新規設計。フレームに用意された2ヶ所の取付穴を活用し、1ピース構造でありながらも4ポジション仕様に。1ピースとすることで設計に自由度を持たせ、高い剛性、軽量化、操作性向上といった性能面を追求し、高性能かつ信頼性の高いステップへと仕上げました。
またシフトペダルの回転軸をメインプレート側に移設させ、リンクプレートには高剛性なボールベアリングを採用することで、よりシフトフィールを向上させ、ライダーの操作に対してクイックな反応でライディングをサポートします。
Designed specifically for the MT-09 (21-) model, this is a newly designed component.
It utilizes two mounting holes provided on the frame, allowing for a one-piece structure with four adjustable positions.
By opting for a one-piece design, we have achieved greater design flexibility while emphasizing high rigidity, lightweight construction, and improved maneuverability, thereby delivering a high-performance and highly reliable footstep.
Additionally, the pivot axis of the shift pedal has been relocated to the main plate, and a high-rigidity ball bearing has been adopted in the link plate.
These enhancements contribute to an improved shift feel and provide quick responsiveness to the rider's inputs, thereby supporting a more agile riding experience.
Designed specifically for the MT-09 (21-) model, this is a newly designed component.
It utilizes two mounting holes provided on the frame, allowing for a one-piece structure with four adjustable positions.
By opting for a one-piece design, we have achieved greater design flexibility while emphasizing high rigidity, lightweight construction, and improved maneuverability, thereby delivering a high-performance and highly reliable footstep.
Additionally, the pivot axis of the shift pedal has been relocated to the main plate, and a high-rigidity ball bearing has been adopted in the link plate.
These enhancements contribute to an improved shift feel and provide quick responsiveness to the rider's inputs, thereby supporting a more agile riding experience.
